Flat Bank Housing

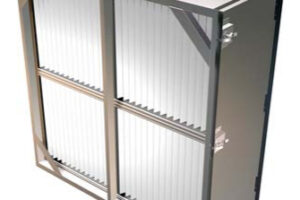

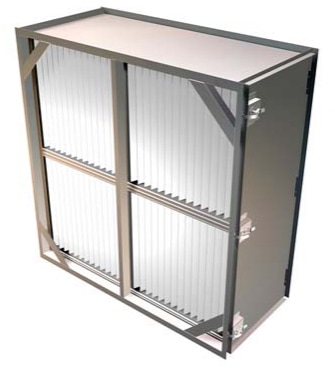

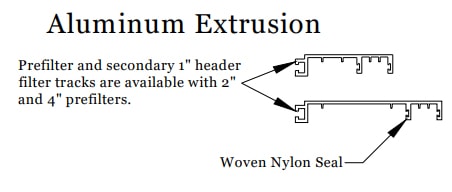

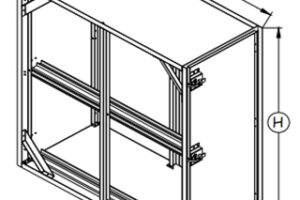

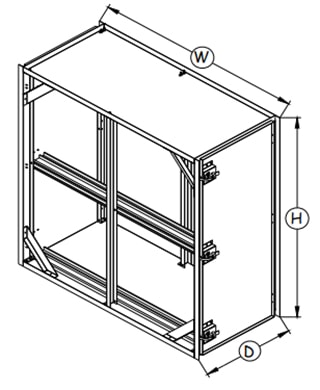

The Flat Bank air filter housing is a permanent housing designed to hold ASHRAE rated air filters. Standard filter sizes are 2” or 4” in depth. Housings are manufactured in 8-½” and 12” depths. This housing is fabricated from galvanized steel or -optional T304 stainless steel and is welded together and or bolted together. The unit is one-piece construction with aluminum extrusion to hold the filters in place. Upstream corner gussets increase the rigidity of the unit. Each unit is manufactured to meet specific end user requirements.

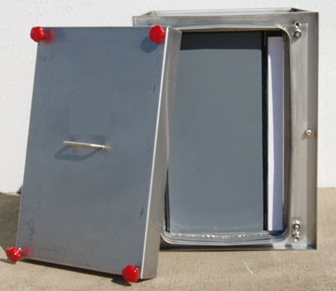

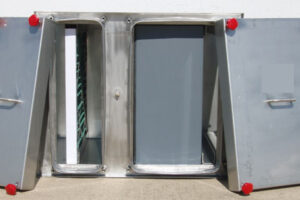

The Side Access HVAC air filter housing  is a permanent housing designed to specifically accommodate ASHRAE rated air filters. Filter efficiencies range anywhere from 30-95% by ASHRAE test method. This 22-¼, 34-¼, 42” or it may be a custom air filter housing with galvanized steel- optional T304 stainless steel and is intermittently welded and or bolted together. All seams are silicone caulked for airtight seal. The unit is a one-piece construction with filter track extrusion permitting either a 2”, 4” or 6” prefilter track and a 1” final filter header track. Each housing is custom manufactured to meet specific end user requirements.

V Bank filter housing is a permanent single stage unit designed to hold pleated ASHRAE rated filters. The unit can accommodate both 2” and 4” filters in a low-pressure drop configuration. The V Bank unit is manufactured out of either galvanized steel or optional stainless steel and is welded and or bolted together. Each housing is custom manufactured to meet specific end user requirements.

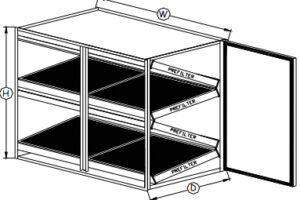

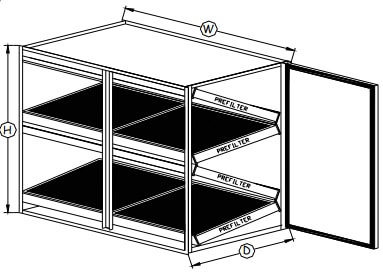

Carbon filter/adsorber housing is a permanent multi stage unit designed to remove particulate and gas phase molecular contaminants, making them excellent industrial air filter housings. The molecular contamination unit accommodates either a 2” or 4” deep prefilter section as well as nominal ¾” carbon trays. Tray configuration is based on twelve trays per twenty-four inches of height. The air filter housing can accommodate multiple face style filters in a low-pressure drop. This Carbon housing is fabricated out of galvanized steel-optional stainless steel. Corner gussets are added to strengthen the structure of the housing. Shelves within the unit are bolted in place in order to accommodate varying manufacturers filters. Each housing is custom made to meet specific end user requirements.

Contact us for more details.
